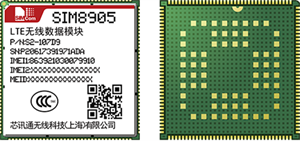

SIMCom presents an ultra compact and reliable wireless module SIM8905 which is based on Qualcomm MSM8909multiple-mode LTE platform. SIM8905is a complete multi-band LTE-FDD/TDD/TD-SCDMA/DC-HSPA+/HSPA/UMTS/EVDO/EGDE/GPRS/GSM/GNSS smartmodule designed with very powerful processors, allowing customersto benefitfrom small dimensions and cost-effective product solutionswith low power consumption in high-speed throughput.
产品详情
General features
SIM8905
Tri-Band LTE-FDD B1/B3/B5/B8
Quad-Band LTE-TDD B38/B39/B40/B41
Dual-Band TD-SCDMA B34/B39
Tri-Band GSM/GPRS/EDGE/EGSM: 850/900/DCS1800
SIM8905A
Nine-Band LTE-FDD B2/4/5/7/12/13/17/25/26
One-Band LTE-TDD B41
Five-Band UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B8
Tri-Band GSM/GPRS/EDGE B2/B5/B8
SIM8905E
Six-Band LTE-FDD B1/B3/B5/B7/B8/B20
Tri-Band LTE-TDD B38/B40/B41
Quad-Band WCDMA B1/B2/B5/B8
GSM/GPRS/EDGE B2/B3/B5/B8
GPRS multi-slot class 33
EDGE multi-slot class 33
WIFI b/g/n and BT 4.0
Supply voltage range: 3.4 ~ 4.4 V
Operation temperature: -25℃to +75℃
Dimension: 40.5*40.5*2.8mm
Weight: 10.6g
LTE FDD/TDD Rel-9 Cat4/Rel-10 Cat4
UTMS (SIM8905)
HSPA+ DC-HSPA+,Rel-10 (SIM8905)
TD-SCDMA HSDPA Cat. 15 (SIM8905)
TD-SCDMA HSUPA Cat. 6 (SIM8905)
GSM GSMR99,GPRS,EDGE
GNSS/BEIDOU gpsOneGen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
LTE-FDD
-Uplink up to 50Mbps,
-Downlink up to 150Mbps
LTE-TDD
-Uplink up to 35 Mbps,
-Downlink up to 130 Mbps
DC-HSPA+
-Uplink up to 5.76Mbps
-Downlink up to 42Mbps
WCDMA/HSPA/HSPA+: 42.2 Mbps(DL),11.5 Mbps(UL)
WCDMA-Uplink/Downlink up to 384Kbps (SIM8905E)
CDMA 1xRTT153.6kbps(DL) 153.6kbps(UL)
CDMA EV-DO3.1Mbps(DL) 1.8Mbps(UL)
TD-SCDMA2.8Mbps(DL) 2.2Mbps(UL)
EDGE296kbps(DL) 236.8kbps(UL) (SIM8905/E)
EDGE -Uplink/Downlink up to 236.8Kbps (SIM8905A/E)
GPRS107kbps(DL) 85.6kbps(UL) (SIM8905/E)
GPRS -Uplink/Downlink up to 85.6Kbps (SIM8905A)
Other features
1080P video decode & 720P video encode
USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10/Windows CE/Mobile/ Linux /Android (SIM8905)
USB Driver for Microsoft Windows 2000/XP/Vista (SIM8905A/E)
USB Driver for Win7/Win8(SIM8905A/E)
Android5.x/Android6/Android7(SIM8905A/E)
Android5.x/7.1
8GBEMMC+8Gb LPDDR3
Interfaces
210 SMT pins including
2 Camera (MIPI,8M)
LCD (MIPI,720P)
Analog Audio (Microphone, Headset, Handset)
USB 2.0
UART
I2C
ADC
Battery
GPIO
SPI
RTC
SD3.0
2 USIM Card
Micro SD card interface (SIM8905A)
Battery & Charger (SIM8905A)
Micro SD card interface (SIM8905E)
Certifications
ROHS
REACH
CCC (SIM8905)
FCC(TBD) (SIM8905A)
CE (SIM8905E)
